product number: BS-5030
product name: Portable Hardness Test
specification: ASTM A956;DIN 50156
producing area: Switzerland

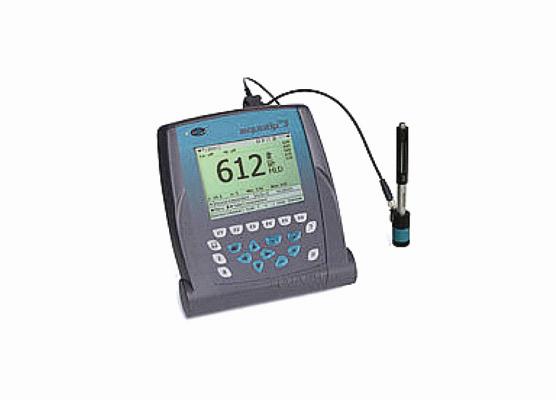

Portable Hardness Test
Large, easy to read display with backlight
Highly accurate ± 4 HL
Automatic correction for impact direction
Converts to all common hardness scales (HV, HB, HRC, HRB, HS, Rm)
Light weight and easy to use

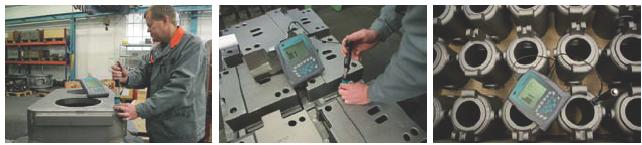

Fast testing for a wide range of applications
Large memory with on-screen review of data
Download to PC or print directly via USB, Ethernet, or RS-232
User profiles for fast change of all settings
Rugged sealed membrane keypad
Internal rechargeable batteries or standard "C" cells
Custom conversions for uncommon alloys

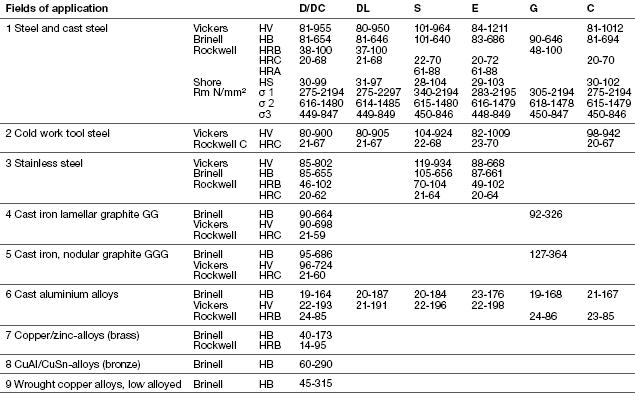

Measuring range
DISPLAY UNIT
DIMENSIONS: 170 x 200 x 45 mm (6.7 x 7.9 x 1.8 inches)
--------------------------------------------------------------------------------
WEIGHT: 780g plus approx. 120g battery pack
--------------------------------------------------------------------------------
UNIT MATERIAL: Shock resistant ABS plastic
--------------------------------------------------------------------------------
UNIT DISPLAY: large, QVGA LCD with adjustable contrast and backlight
--------------------------------------------------------------------------------
RESOLUTION: 1 HL; 1 HV; 1 HB; 0.1 HRC; 0.1 HRB; 0.1 HS; 1 N/mm²; Rm
--------------------------------------------------------------------------------
INTERNAL DATA STORAGE: ~ 100'000 measured values
--------------------------------------------------------------------------------
BATTERY TYPE: rechargeable Li-Ion (pn 35300029), or 3 standard size "C" cells
--------------------------------------------------------------------------------
OPERATING TEMPERATURE: 0 to +50℃(32 to 122°F)
--------------------------------------------------------------------------------
STORAGE TEMPERATURE: -10 to +60℃(14 to 140°F)
--------------------------------------------------------------------------------
HUMIDITY: 90 % max.
--------------------------------------------------------------------------------
INPUT-SOCKETS IMPACT DEVICES: 20-pole
--------------------------------------------------------------------------------
COMMUNICATION: Ethernet, USB&RS 232. Bi-directional with PC application
--------------------------------------------------------------------------------
APPLICATION PROGRAM: EQUOLINK 3
--------------------------------------------------------------------------------
ACCURACY: ±4 HL
